홈 /제품 소개/광섬유 슬립 링/Single channel fiber optic slip ring, no friction, high speed, long life, up to 100 million revolutions or more LPFO-01G

Single channel fiber optic slip ring, no friction, high speed, long life, up to 100 million revolutions or more LPFO-01G

2 Pieces
MOQ
Single channel fiber optic slip ring, no friction, high speed, long life, up to 100 million revolutions or more LPFO-01G
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: LPFO-01G
Type: Electronic Accessories
Number of channels: 1
Insertion loss: <2dB
Maximum speed: 1000rpm
기본 정보
Model Number: LPFO-01G
결제 및 배송 조건
제품 설명
Product Description

Bargain Price Only in Alibaba

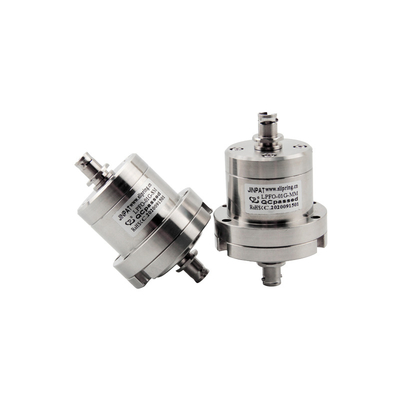

LPFO-01G pigtailless interface optical fiber slip ring adopts ST-ST socket design, which is convenient for direct installation and removal of optical fiber jumpers, and rapid networking applications. 360-degree rotating transmission optical signal, single and multi-mode optional, with low loss, wide wavelength range, high speed, long life and so on. Can integrate slip ring to transmit power, video, communication, bus, control and other signals
Advantages
  • No pigtail interface design, convenient and quick installation and disassembly
  • Single multi-mode optional, wide wavelength, low loss
  • No contact, no friction, high speed, long life, up to 100 million revolutions or more
  • Rugged structure, standard IP54 protection, can be used in harsh environments
  • Integrated slip ring to transmit power, video, communication, bus, control and other signals
Application
Robots, Radar Systems, Photoelectric Pods, Fire Control Systems, Zhoushi Plat form, Video Surveillance Systems, Medical Systems
Technical Parameter

Optical
 Mechanical
Number of channels
 1
Maximum speed
 1000rpm
Working wavelength
Single mode:1270-1650nm
Multi mode:650-1300nm
 Life span >100 million revolutions
Insertion loss <2dB Package form ST female seat
Insertion loss
change value
 <1dB Connector type ST/PC
Return loss Single mode:>40dB
Multi mode:>25dB
 Vibration standard MIL-STD-167-1A
Maximum power 23dBm
(high power can be customized)
 Impact standard MIL-STD-810G
Environmental
Operating
Temperature
 -40~75°C
IP Protection Level
IP54 or higher
Storage
Temperature
 -50~85°C
LPFO-01G Outline Drawing
